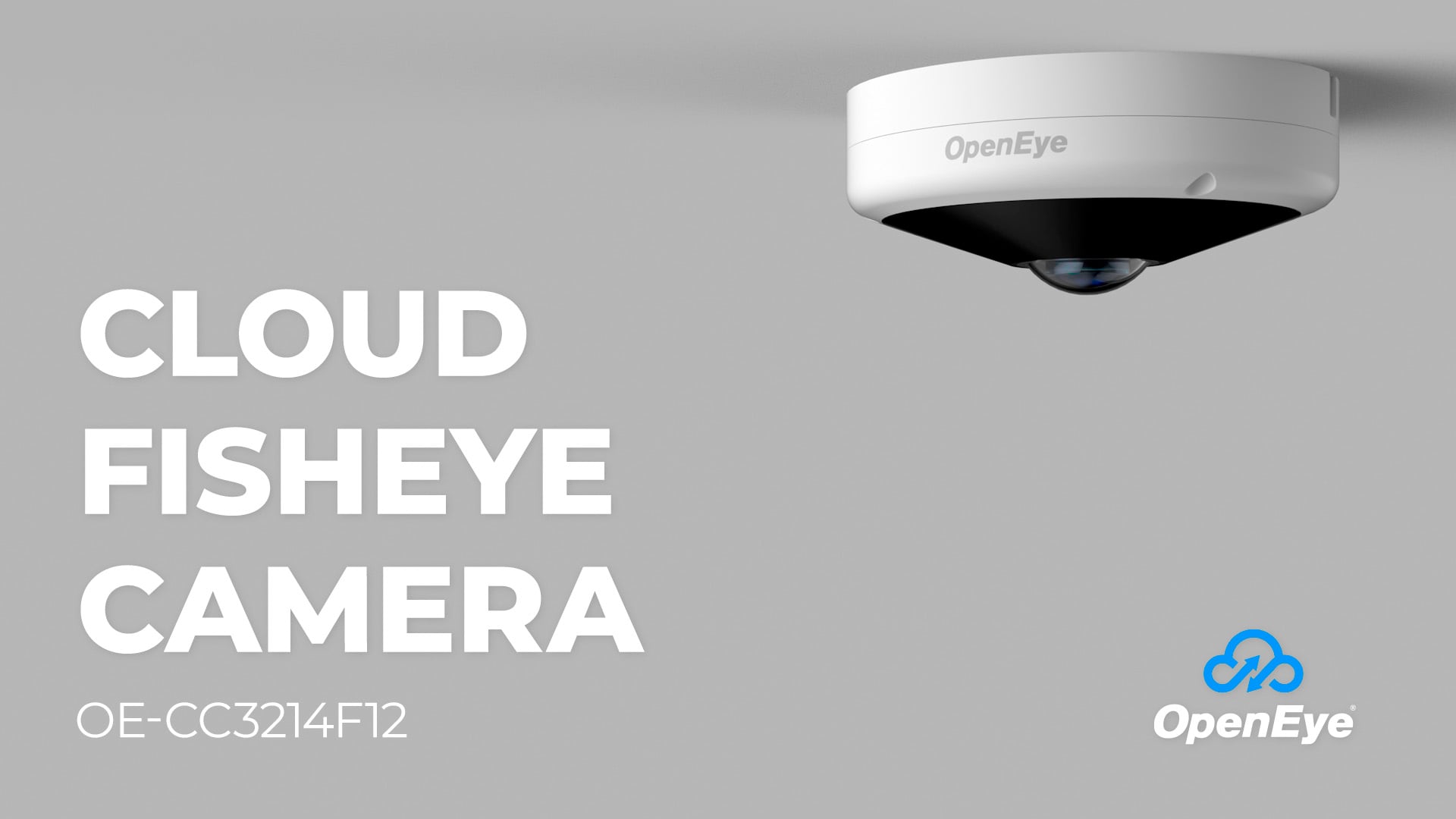

12MP Cloud IP Fisheye Camera

OE-CC3214F12

12MP Cloud IP Fisheye Camera

Equipped with a 12MP lens, the OE-CC3214F12 cloud camera features onboard recording, a dedicated analytics processor, and all the benefits of OpenEye Web Services.

Speak to Sales

Capabilities

Key features of OE-CC3214F12

12MP

12MP

Receive maximum resolution and video recording with 12.6 million pixels.

IK10

IK10

Protect cameras from tampering & vandalism with an IK10 rating.

Relay Output

Relay Output

Use relays to actively manage your business remotely.

Sensor Input

Sensor Input

Use sensors to actively manage your business remotely.

High Dynamic Range

High Dynamic Range

Achieve crystal clear image clarity in diverse lighting.

Advanced Analytics

Advanced Analytics

Get a more intelligent & aware solution with advanced analytics processing.

Product Details

Camera Specifications

Environment:
Outdoor
Maximum Resolution:
12MP
Maximum Framerate:
30
Lens:
1.95mm Fixed
Field of View:
180°
Pan/Tilt/Rotate:
N/A
Ingress Protection:
IP67
Impact Rating:
IK10
Alarm I/O:
1 / 1
Power Source:
PoE+ 802.3at / 12vDC
Power Consumption:
PoE+ 802.3at: 15.1W / 12vDC: 14.7W
Operating Temperature:
-40°~122°F (-40° ~ 50°C)
Dimensions:
W: 5.9 x H: 2.5 (150 x 65mm)
Weight:
2.6lbs (1.2kg)
Certifications:
UL / cUL / UKCA / CE / FCC Part 15, Subpart B, Class A
Country Of Origin:
Taiwan
NDAA Compliant:
Yes

Technical Resources

Documentation

Documents

AE Spec:
OE-CC3214F12 A&E Spec Sheet
Accessory Tree:
OpenEye Camera Accessories
Installation Guide:
OE-CC3214F12 Quick Installation Guide
Line Card:
Product Line Brochure
Spec Sheet:
OE-CC3214F12 Spec Sheet
Technical Resource:
Country of Origin & NDAA Compliance
User Manual:
OE-CC3214F12 Hardware Manual

Enhancements

Compatible Accessories

32-Series Junction Box

32-Series Junction Box

OE-CA32JB-01
32-Series Wall Mount

32-Series Wall Mount

OE-CA32WM-01
32-Series Transfer Plate

32-Series Transfer Plate

OE-CA32TP-01
32-Series Pendant Cap

32-Series Pendant Cap

OE-CA32PC-01
32-Series Wall mount kit w/ outdoor junction box

32-Series Wall mount kit w/ outdoor junction box

OE-CA32WMKIT-01

32-Series Pole mount kit w/ outdoor junction box

32-Series Pole mount kit w/ outdoor junction box

OE-CA32PMKIT-01

32-Series Wall mount kit w/ pendant cap

32-Series Wall mount kit w/ pendant cap

OE-CA32WMKIT-02

32-Series Corner mount kit w/ pendant cap

32-Series Corner mount kit w/ pendant cap

OE-CA32CMKIT-01

32-Series Pole mount kit w/ pendant cap

32-Series Pole mount kit w/ pendant cap

OE-CA32PMKIT-02

32-Series Ceiling mounted pole kit w/ pendant cap

32-Series Ceiling mounted pole kit w/ pendant cap

OE-CA32CPKIT-01
