OE-CC3020D5

5MP Cloud IP Dome Camera

Equipped with an 5MP lens, the OE-CC3020D5 cloud camera features onboard recording, a dedicated analytics processor, and all the benefits of OpenEye Web Services.

Speak to Sales

Product Overview Video

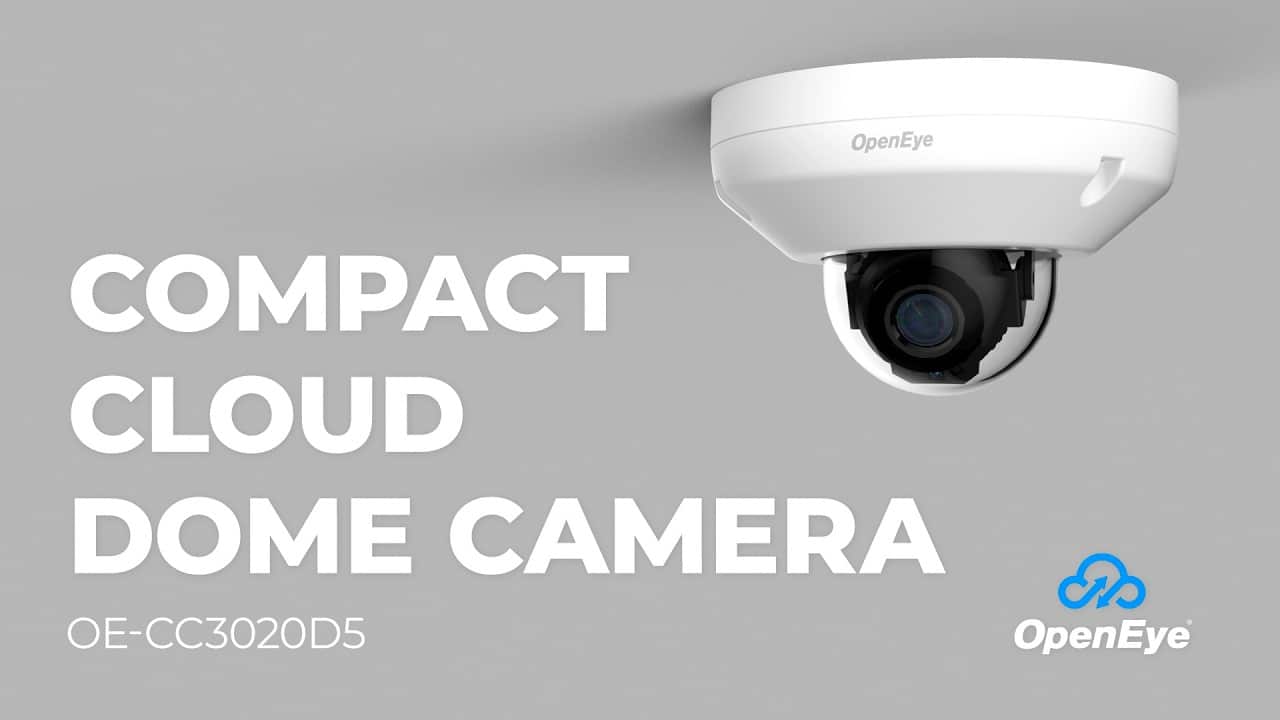

OE-CC3020D5 5MP Cloud Compact Dome Camera

Capabilities

Key features of OE-CC3020D5

High Dynamic Range

Achieve crystal clear image clarity in diverse lighting.

Advanced Analytics

Get a more intelligent & aware solution with advanced analytics processing.

5MP

Experience clear imagery with 5MP resolution, boosting your video quality.

Product Details

Camera Specifications

Environment:

Outdoor

Maximum Resolution:

2592x1944

Maximum Framerate:

30FPS @ 2592x1944

Lens:

2.8MM Fixed Lens

Field of View:

97°

Pan/Tilt/Rotate:

Pan: 360° | Tilt: 60° | Rotate: 90°

Ingress Protection:

IP66

Impact Rating:

IK10

Alarm I/O:

N/A

Power Source:

PoE 802.3af / 12vDC

Power Consumption:

PoE 802.3af: 6.5W / 12vDC: 6.2W

Operating Temperature:

-4°~140°F (-20° ~ 60°C)

Dimensions:

W: 4.7 x H: 3.1 (120 x 78.5mm)

Weight:

1.5 Lbs (0.7Kg)

Certifications:

UL / cUL / UKCA / CE / FCC Part 15, Subpart B, Class A

Country Of Origin:

Taiwan

NDAA Compliant:

Yes

Technical Resources

Documentation

Documents

AE Spec:

OE-CC3020D5 A&E Spec Sheet

Accessory Tree:

OpenEye Camera Accessories

Installation Guide:

OE-CC3020D5 Quick Installation Guide

Line Card:

Product Line Brochure

Spec Sheet:

OE-CC3020D5 Spec Sheet

Technical Resource:

Country of Origin & NDAA Compliance

User Manual:

OE-CC3020D5 Hardware Manual

Enhancements

Compatible Accessories

30-Series Wall mount kit w/ outdoor junction box

OE-CA30WMKIT-01

30-Series Pole mount kit w/ outdoor junction box

OE-CA30PMKIT-01

30-Series Wall mount kit w/ pendant cap

OE-CA30WMKIT-02

30-Series Corner mount kit w/ pendant cap

OE-CA30CMKIT-01

30-Series Pole mount kit w/ pendant cap

OE-CA30PMKIT-02

30-Series Ceiling mounted pole kit w/ pendant cap

OE-CA30CPKIT-01
