OE-C8312P2

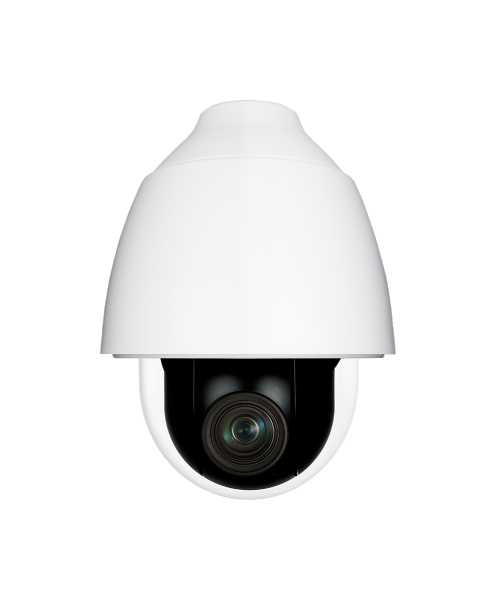

2MP Outdoor IP PTZ Dome Camera

The OE-C8312P2 delivers long range, reliable perimeter security by combining 40x PTZ coverage and rugged design for large outdoor environments.

Speak to Sales

Capabilities

Key features of OE-C8312P2

2MP

Experience clear imagery with 2MP resolution, boosting your video quality.

PTZ

360° coverage provides unparalleled surveillance in any environment.

IK10

Protect cameras from tampering & vandalism with an IK10 rating.

Audio I/O

Enhance video surveillance with clear sound capture and playback.

Product Details

Camera Specifications

Environment:

Outdoor

Maximum Resolution:

2MP (1920x1080)

Maximum Framerate:

30FPS @ 2MP H.264

Lens:

4.3 ~ 170 mm 40x Zoom Lens

Field of View:

Wide: 65.5° Tele: 2°

Pan/Tilt/Rotate:

Tilt: -10° ~ 100° / Pan: 360° Endless

Ingress Protection:

IP66

Impact Rating:

IK10

Alarm I/O:

1 / 1

Power Source:

802.3at PoE+ (30W) / 24vAC ± 10%

Power Consumption:

Max 29.04W (With Heater)

Operating Temperature:

-40 ~ 122°F (-40 ~ 50 °C)

Dimensions:

W: Ø8.2 x H: 11.1 (Ø210x279mm)(With sunshield)

Weight:

6.83lbs (3.1kg)

Certifications:

UL, CE, FCC, UKCA

Country Of Origin:

Taiwan

NDAA Compliant:

Yes

Technical Resources

Documentation

Software

Network Camera Manager:

2.7.0.15

OE-C8312P2-1 Camera Firmware:

pc20260302YX

Documents

AE Spec:

OE-C8312P2 A&E Spec Sheet

Accessory Tree:

OpenEye Camera Accessories

General:

OE-C8312P2 Hardware Manual

Line Card:

Product Line Brochure

Quick Start Guide:

OE-C8312P2 Quick Start Guide

Spec Sheet:

OE-C8312P2 Spec Sheet

Technical Resource:

Country of Origin & NDAA Compliance

Enhancements

Compatible Accessories

Wall Mount for 1-1/2" Threaded Pendant Caps

OE-CA00WM-01

00-Series Corner Mount Kit with Wall Mount Arm

OE-CA00CMKIT-01

00-Series Pole Mount Kit with Wall Mount Arm

OE-CA00PMKIT-02
