Analog to IP Camera Encoder

Product Overview

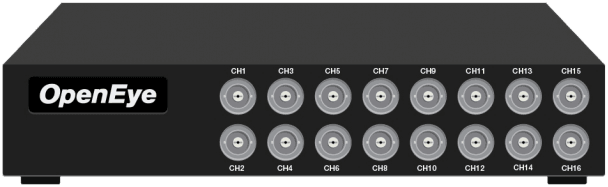

The OE-CAE16HD HD video encoder is an easy-to-use bridge to connect analog cameras, including high-resolution analog cameras, to your OpenEye IP recording solution. Capable of 30 IPS real-time encoding and streaming, the OE-CAE16HD encoder supports H.264 video at resolutions up to 1080P.

The encoder is equipped with an HDMI port for local spot monitor output and comes with hardware for rack or wall mounting. The OE-CAE16HD encoder is an excellent choice for users looking to effectively leverage their existing analog infrastructure yet allow for future migration to HD analog and IP video.

User Login
Sign in and get access to exclusive content. Don't have an account? Register now.

Support Downloads


OE-CAE16HD Video Encoder Firmware:


Quick Start Guide:
Spec Sheet:

Technical Specs

Video Input:
16 x BNC, 1.0Vp-p, 75 Ω
HDMI® Output:
1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080
Video Resolution:
Main Stream: 1080P / 720P / 960H / D1 Second Stream: D1/CIF
Network Connectivity:
RJ-45, 100 / 1000 Mbps Ethernet
Operating Temperature:
32 ~ 104 °F (0 ~ 40 °C)
Power Consumption:
Input Voltage:
9.13" x 1.7" x 9.25" (232mm x 44mm x 111mm)
3.3lb (1.5kg)
Country Of Origin:
