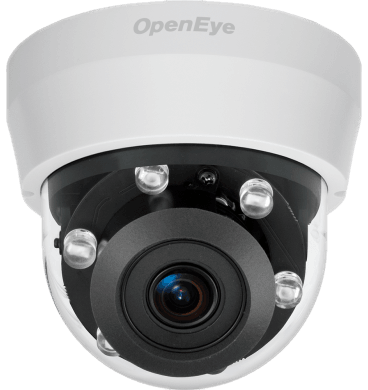

4MP High Resolution Indoor IP Dome Camera

OE-C6614-AWR

Product Overview

The OE-C6614-AWR is a high power indoor IP dome camera and is perfect for users that need a feature rich camera with superior image quality. Equipped with a 4MP 3 ~ 9mm motorized, autofocus lens and P-iris, the OE-C6614-AWR allows you to control both zoom and focus remotely. The OE-C6614-AWR features True WDR and True Day/Night operation for improved low light performance and employs adaptive IR technology to prevent overexposure of objects close to the camera. The OE-C6614-AWR is available with an array of mounting accessories for any application. The Smart Compression option reduces storage requirements by up to 70% while maintaining high-resolution video and preventing a perceptible reduction in video quality. OpenEye HD IP cameras with Smart Compression allows users to save money and still meet video retention and resolution requirements.

All OpenEye IP cameras are fully ONVIF™ compliant and are compatible with the OpenEye Web Services platform, allowing multiple users to view high-quality images and perform remote setup using a Web browser.

Line Card: OpenEye Camera Line Card
Accessories: OpenEye Camera Accessories
Quick Start: OE-C6614-AWR Quick Start Guide
User Manual: OE-C6614-AWR User Manual
Spec Sheet: OE-C6614-AWR Specifications Sheet
Sign in and get access to exclusive content. Don't have an OpenEye account? Register now.



× Key Features

4MP
Auto Focus
BNC Analog Output
IR Illumination
P-IRIS
H.264 Smart Compression

× Technical Specs

Camera Specifications

Maximum Resolution:
  • 4MP (2688 x 1512)
Imager Size:
  • OV4689
Lens:
  • 3-9mm Motorized Autofocus Lens
F-Stop:
  • F 1.7
Field of View:
  • 109° (Wide); 33° (Tele)
Operating Temperature:
  • -22 ~ 122 °F (-30 ~ 50 °C)
Power Consumption:
  • 9.35W
Input Voltage:
  • DC 12V / AC 24V / PoE
Dimensions:
  • 4.6 x 4.2in (117 x 107mm)
Weight:
  • 1.13 lb (512 g)
Country of Origin:
  • Taiwan

× Accessories

Camera Accessories

6000-Series Flush Mount Bracket
Part Number: OE-CA60FM

Compatible with OE-C6413-AWR, OE-C6614-AWR and OE-C7413-AWR.

Download the Spec Sheet
611-Series Wall Mount
Part Number: OE-CA611WM

Compatible with OE-C6123-W, OE-C6413-AWR, OE-C6614-AWR, OE-C7413-AWR and OE-C9616.

Download the Spec Sheet
7500-Series Pendant Mount Adapter
Part Number: OE-CA75APM

Compatible with OE-C6123-W, OE-C6413-AWR, OE-C6614-AWR, OE-C7413-AWR, OE-C7624-AWR and OE-C9616.

Download the Spec Sheet
4S Electrical Box Mounting Plate
Part Number: OE-CA6000M4S

Compatible with OE-C6413-AWR, OE-C6614-AWR, OE-C7413-AWR and OE-C7624-AWR.

Download the Spec Sheet
Low Profile Wall Mount Kit
Part Number: OE-CA6000PMW

Compatible with OE-C6112, OE-C6112-W, OE-C6123-W, OE-C6412, OE-C6413-AWR, OE-C6614-AWR, OE-C7413-AWR and OE-C9616.

Download the Spec Sheet
Gooseneck Wall Mount Kit
Part Number: OE-CA6000PMG

Compatible with OE-C6123-W, OE-C6413-AWR, OE-C6614-AWR and OE-C7413-AWR.

Download the Spec Sheet
